UHF-500D

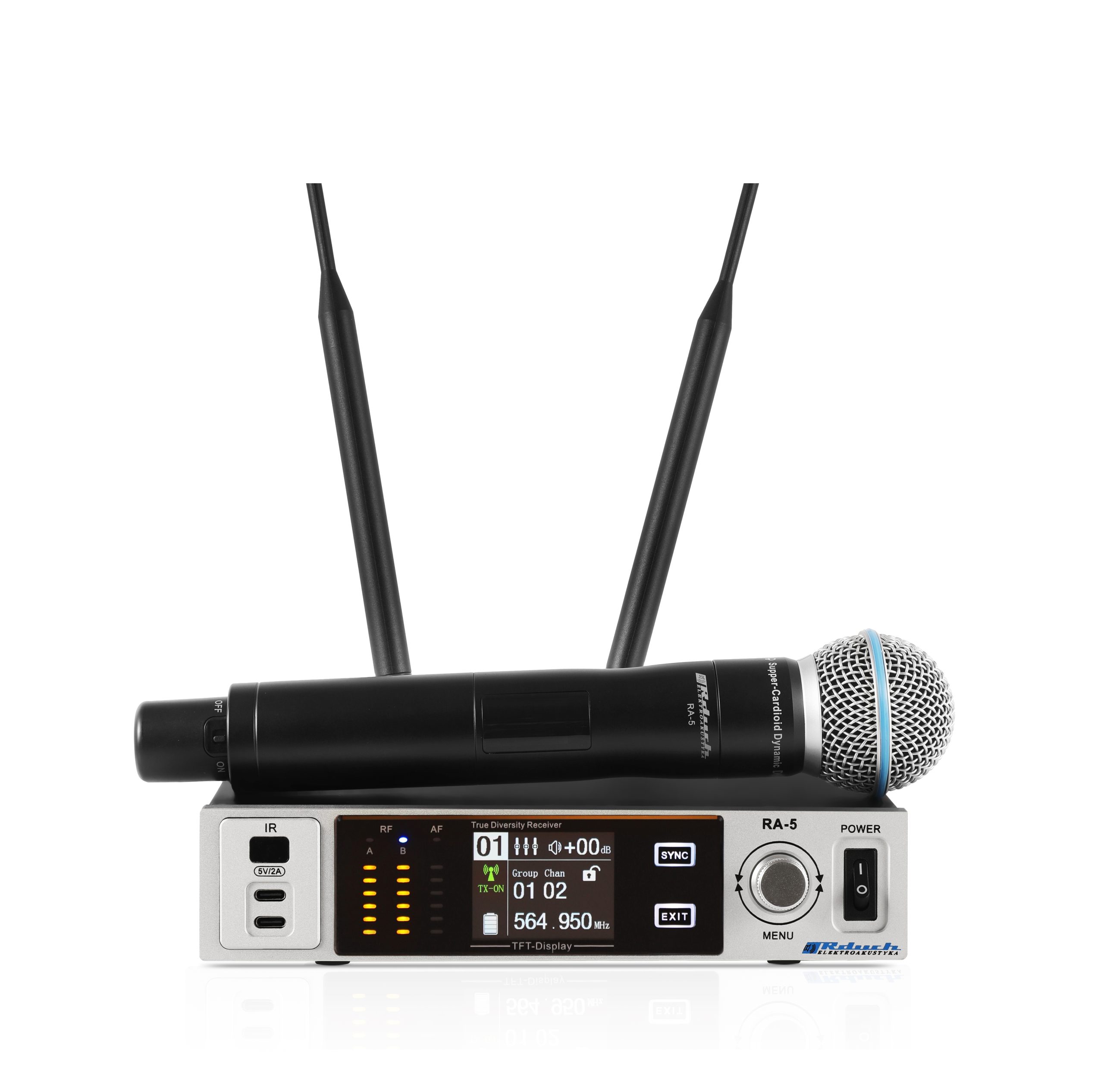

The UHF-500D digital wireless set is a novelty in the Rduch offer. Works in the “true diversity” system with one wireless microphone equipped with a neodymium dynamic insert. It can be connected to an amplifier with a balanced and asymmetrical microphone input or a line input. High sound quality as well as a very large range of the microphone allow the set to be used in large venues, cathedrals, churches as well as on the stage.
| TECHNICAL DATA | UHF-500D Receiver |
|---|---|
| Modulation type | π/4-DQPSK |
| Sampling | 24bit |
| Sampling frequency | 48kHz |
| Data stream speed | 204,8kbps |
| Working frequency | 480,900MHz – 508,125MHz |
| Additional antenna amplifiers power supply | 12V/200mA |
| Dynamic range | > 90dB |
| Stabilization of the frequency | 10ppm |
| Total harmonic distortion | < 0,1% |
| RX Sensitivity | < -94dBm |
| Range guaranteed in open space | 120m |
| Transmitter power | 12 – 18V DC |
| Temperature, humidity | od +5°C do +40°C/ od 8 do 80% |
| Dimensions width/height/depth (mm) | 210 x 50 x 180 |
| Weight | 830g |
| TECHNICAL DATA | UHF-500D Microphone |
|---|---|
| Modulation type | π/4-DQPSK |
| Cartridge | dynamic (NEODYMIUM) |
| Transmitter power | 10mW |
| Audio transmission delay | < 3ms |
| Sound to noise ratio | > 96dB |
| Frequency response | 30 – 18 000Hz |
| Powering the microphone | 2 x AA 1.5V alkaline batteries |
| Temperature, humidity | od +5°C do +40°C/ od 8 do 80% |
| Dimensions diameter/lenght (mm) | Φ52 x 252 |
| Weight (no battery) | 355g |
